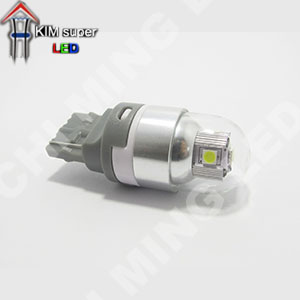

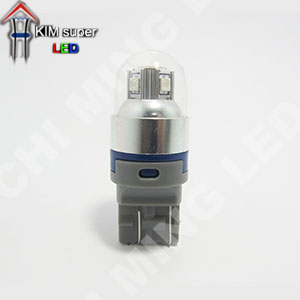

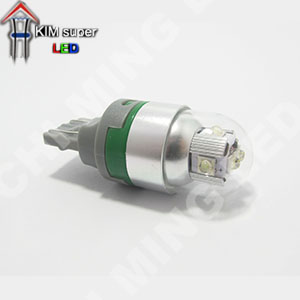

CMW5020 7440/7443 T20 HP LED 6

                      LED brake lights for trucks and trailers
                        CMW5020 7440/7443 T20 HP LED 6


CMW5020 7440/7443 T20 HP LED 6

1. Protected by Glass Lampshade

  • Prevents LED damage from external impact and protects against light attenuation caused by sulfide in the air.
  • The glass lampshade remains clear and does not yellow over time, even under sunlight, while also assisting in heat dissipation.

2. Wide Voltage Design

  • Supports 12-30V DC/AC input, ensuring stable and reliable performance across various vehicle applications.

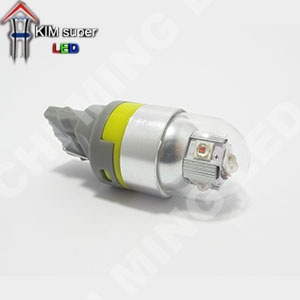

3. Amber PC for Turn Signals

  • The turn signal light is made with PC Amber-2W material, doubling the luminous efficiency and reaching up to 250 lumens for improved visibility.

4. Multiple Applications

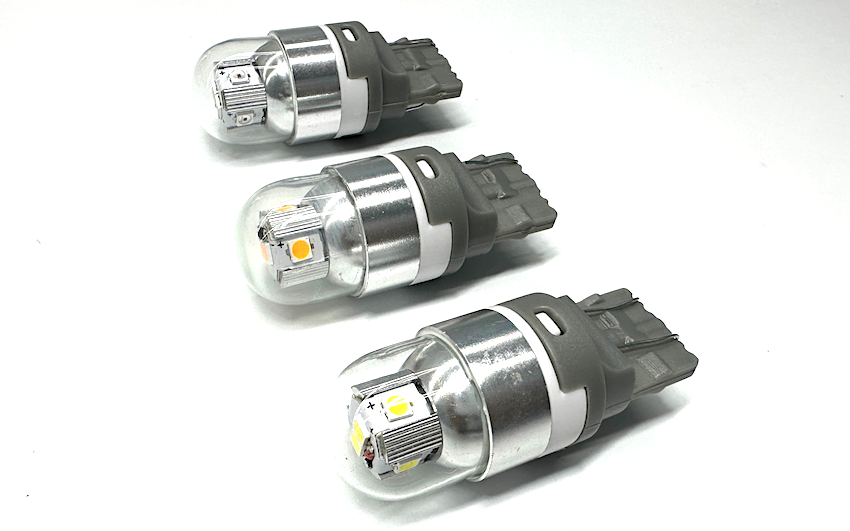

  • Composed of 6 high-power LEDs, this product is designed for various vehicle lighting functions, including turn signal lights, brake lights, running lights, daytime running lights (DRL), reverse lights, side marker lights, trailer lights, and emergency/warning lights.
  • Ideal for cars, trucks, trailers, and heavy-duty vehicles requiring high-performance lighting.

5. High Power & Efficiency

  • Power consumption: 2.64W
  • Luminous flux: 360LM, ensuring superior brightness for enhanced visibility and safety.

6. Easy Installation

  • Designed for 7440/7443 T20 Base, ensuring compatibility with appropriate socket types.
  • Please carefully check your vehicle's bulb base model before purchasing.

7. Stable & Durable

  • With low power consumption, it produces higher luminous flux than traditional bulbs, ensuring better visibility and enhanced driving safety.

8. Important Note

  • When replacing ultra-bright LEDs for turn signals, a load resistor or flash relay may be required to prevent hyper flashing.

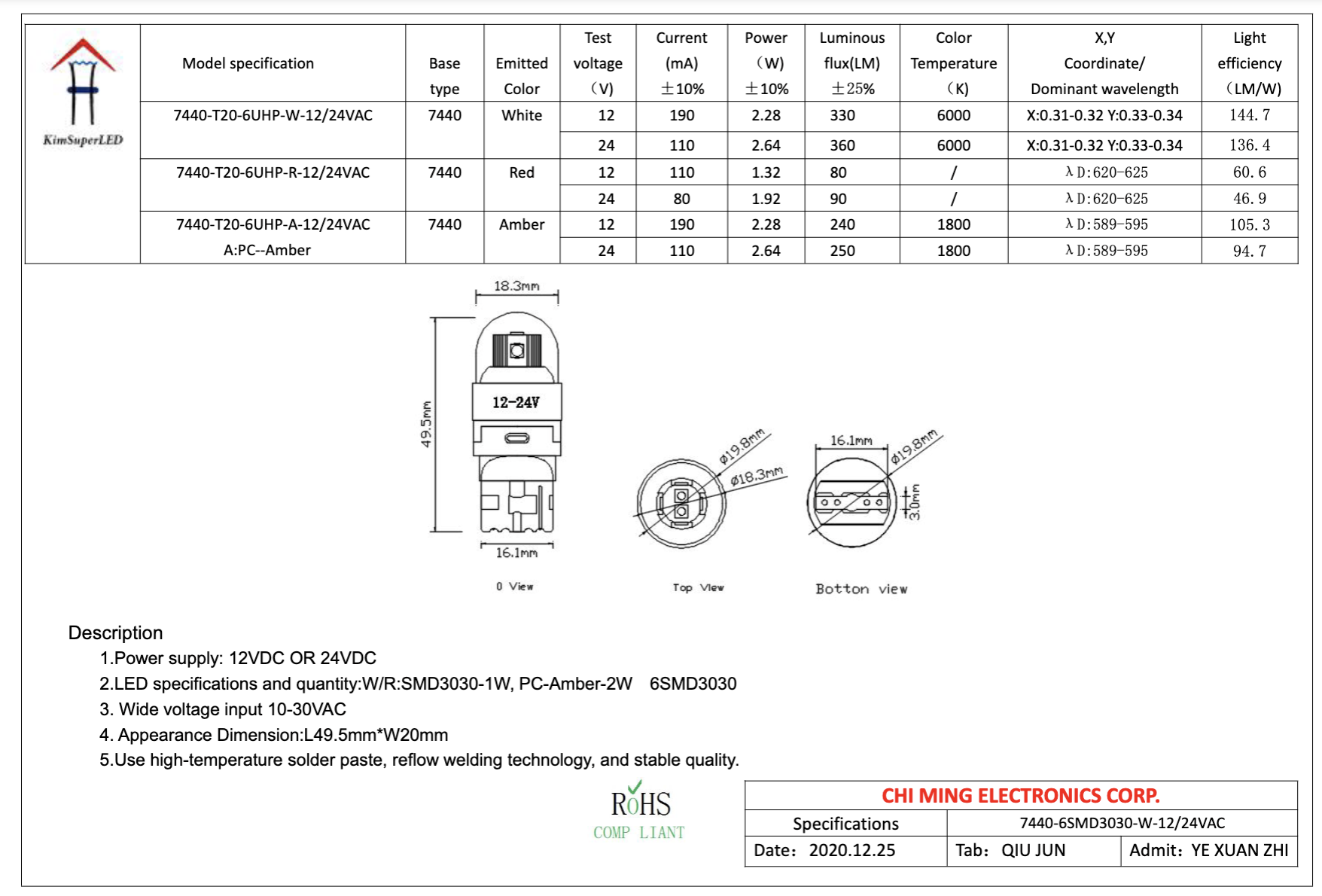

Description

  1. Power supply: 12VDC OR 24VDC

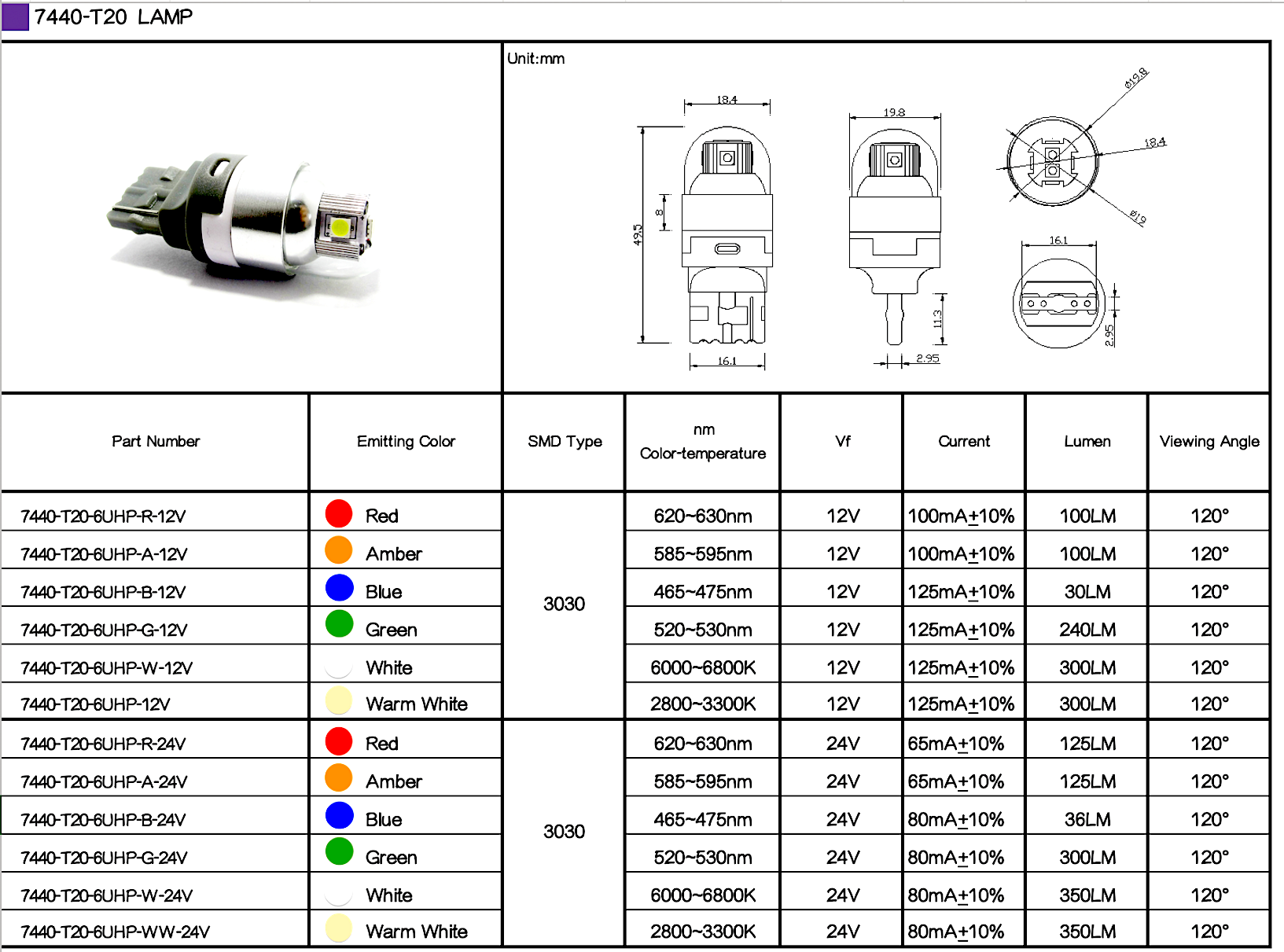

  2. LED specifications and quantity: W/R: SMD3030-1W, PC-Amber-2W, 6 SMD3030
  3. Wide voltage input: 10-30VAC

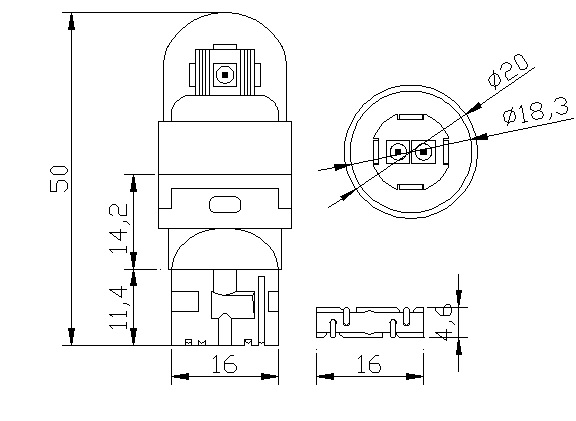

  4. Appearance Dimension: L50mm × W20mm
  5. Manufactured using high-temperature solder paste and reflow welding technology for stable and reliable quality.
  6. Power consumption: 2.64W
  7. Luminous flux: 360LM
