LED CMB2809 Ba9s T10 HP3 1

                            LED dashboard light

                            LED CMB2809 Ba9s T10 HP3 1

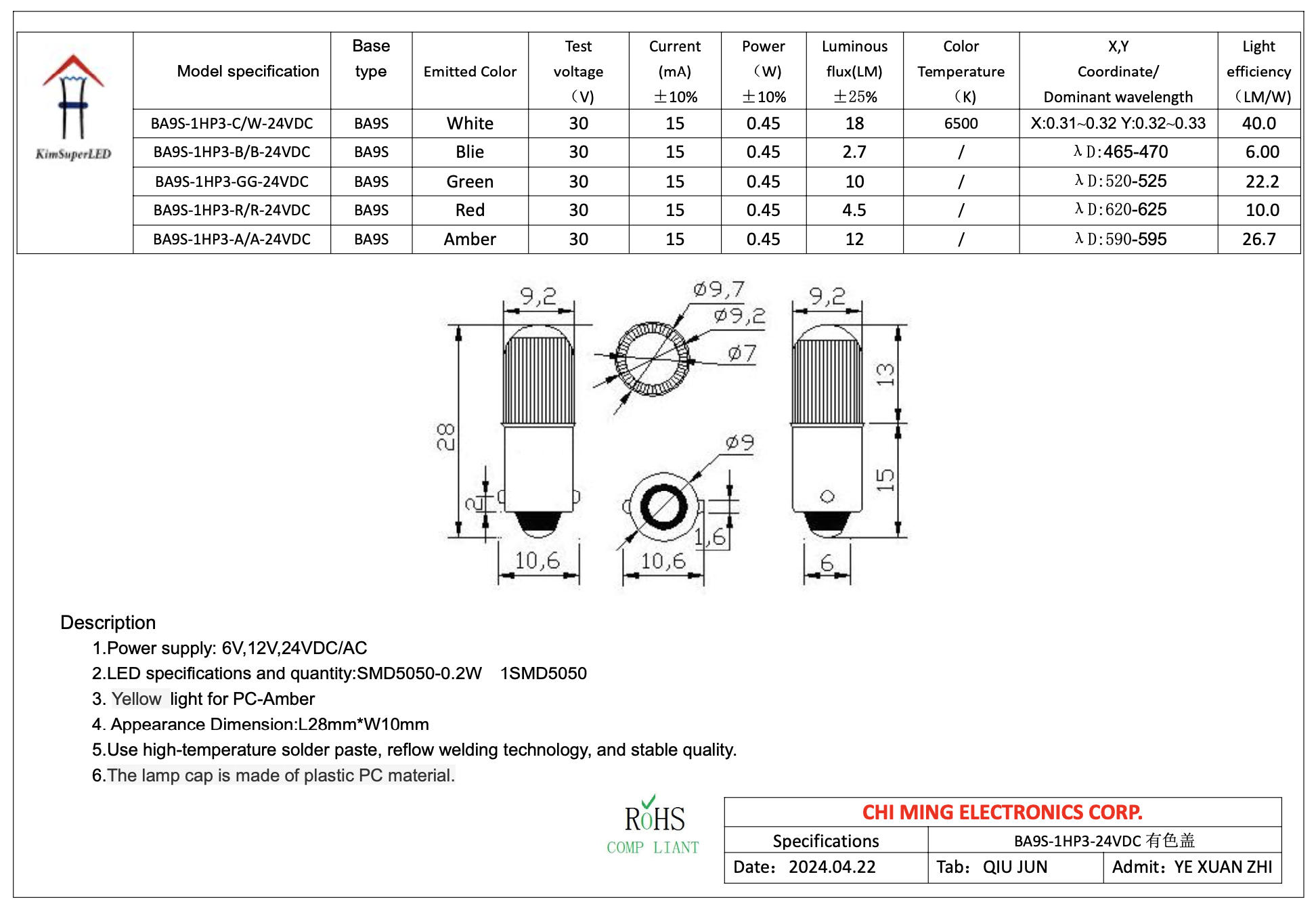

Description
LED CMB2809 Ba9s T10 HP3 1

  1. Power Supply: 6V, 12V, 24V DC/AC
  2. LED Specifications & Quantity: SMD5050-0.2W, 1 SMD5050 LED
  3. Appearance Dimension: L28mm × W10mm
  4. Manufacturing & Quality: Uses high-temperature solder paste and reflow welding technology for stability.
  5. Base Type: BA9S base with a single contact point, featuring a non-polar design for versatile installation.
  6. Striped Cover Design: The cover features fine grooves to enhance light diffusion, making the illumination brighter and more uniform.
  7. Wide Voltage Compatibility: Supports 60V AC, 110V AC, and 230V AC, making it suitable for light industrial lighting, instrument bulbs, and indicator bulbs.
  8. Long Lifespan: Rated at 50,000 hours, with low energy consumption (0.24W per bulb) for extended durability and efficiency.
  9. PC-Amber Manufacturing Method: The amber-colored LED provides twice the brightness of standard lumens, ensuring enhanced illumination.
  10. Color Options: Available in Red, Green, White, Yellow, Blue, and other customizable colors to suit various application needs.
