LED CMSD25540 Shaped vehicle Lights







Description

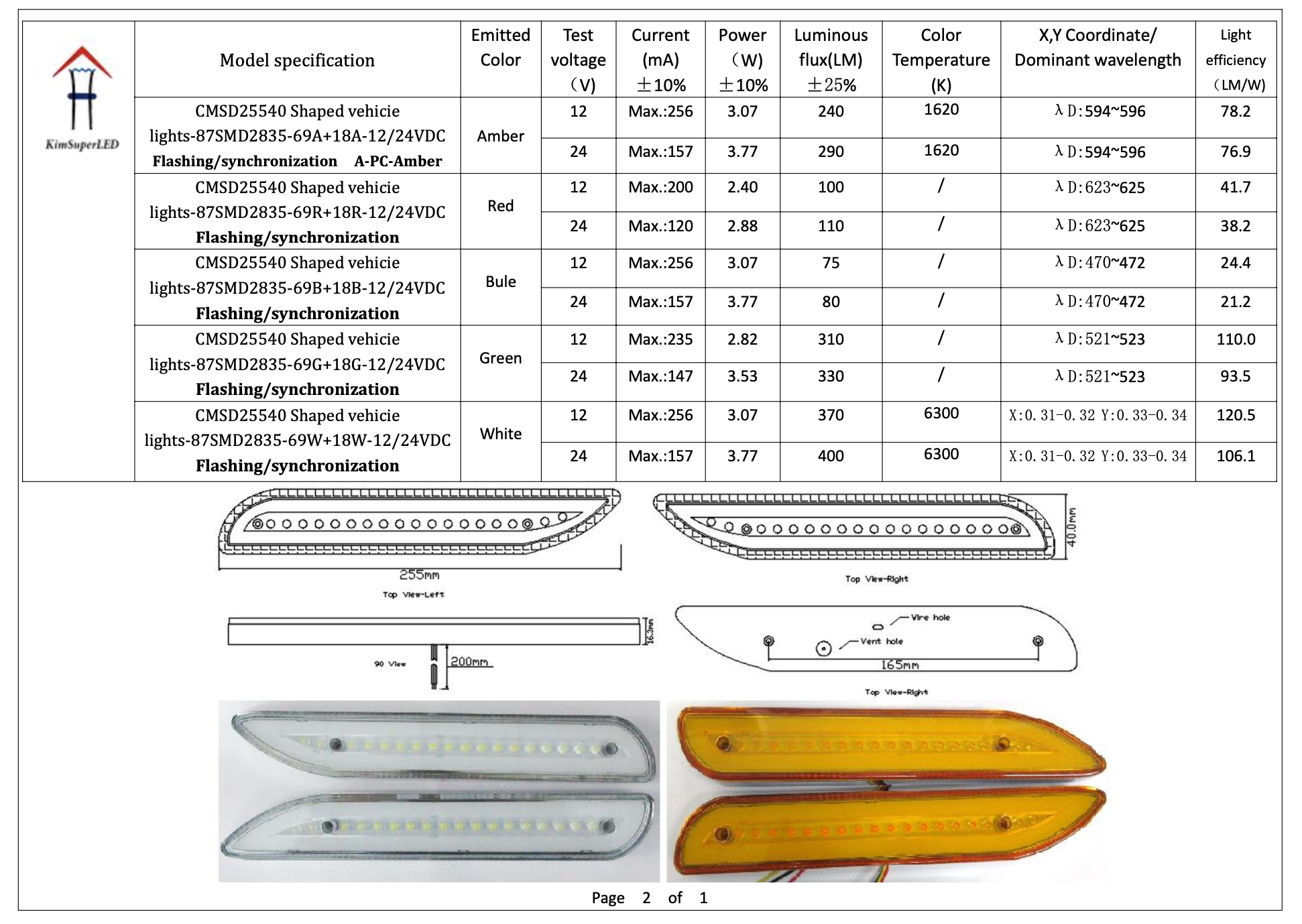

LED CMSD25540 Shaped vehicle Lights

1. CMSD25540  Vehicle Light Description

The CMSD25540 Special Shaped Light Truck Light Kit is designed for vehicles requiring high visibility lighting. The kit consists of 87 2835 SMD LEDs that provide reliable performance in terms of brightness and heat dissipation, ensuring safer driving conditions, especially at night.

2.Durability in all conditions:

The CMSD25540 light is made of aluminum PCB and PC lens, with IP67 waterproof rating, making it waterproof, dust proof and collision-proof. These features ensure reliable operation even in harsh weather conditions, providing long-lasting durability for a variety of uses.

3. Advanced flashing function:

CMSD25540, when using the turn signal, the LED will flash in a streamlined manner, and when driving, the white light will be used as a daytime running light.

4.Effortless Installation:

The CMSD25540 lights feature a thin, user-friendly design for quick mounting. Included brackets and screws facilitate secure installation on grilles or bumpers. This lighting kit is compatible with 12-24V systems, making it versatile for use on trucks, school buses, emergency vehicles, postal vans, snow plows, UTVs, and more. The result is enhanced visibility and improved roadside safety.

5.Power supply:

PWM circuit design, supports 12VDC~24VDC.

LED configuration: 87 SMD2835 LEDs.

Appearance dimensions: 255mm long x 40mm wide.

Wiring length: 200mm 22AWG wire.

Installation specifications: Screw hole spacing 165mm.

Waterproof rating: IP67 certified.

6.Power consumption: Power: 3.7Watts; Lumen: 370LM.


*Features:

Synchronous flashing can be achieved by connecting two yellow wires in parallel.

This lighting kit is designed to provide unparalleled performance and versatility to meet the needs of a variety of vehicle applications.




＊LED CMSD25540 Shaped Vehicle Lights

The LED CMSD25540 shaped vehicle lights can be customized to meet specific customer requirements. The emission color of the LED lights is fully customizable, providing tailored solutions for various applications. Additionally, the flashing patterns can be adjusted according to customer preferences, offering versatility and enhanced functionality.
